Manual Valves

Robust and reliable manual valves for precise flow control.

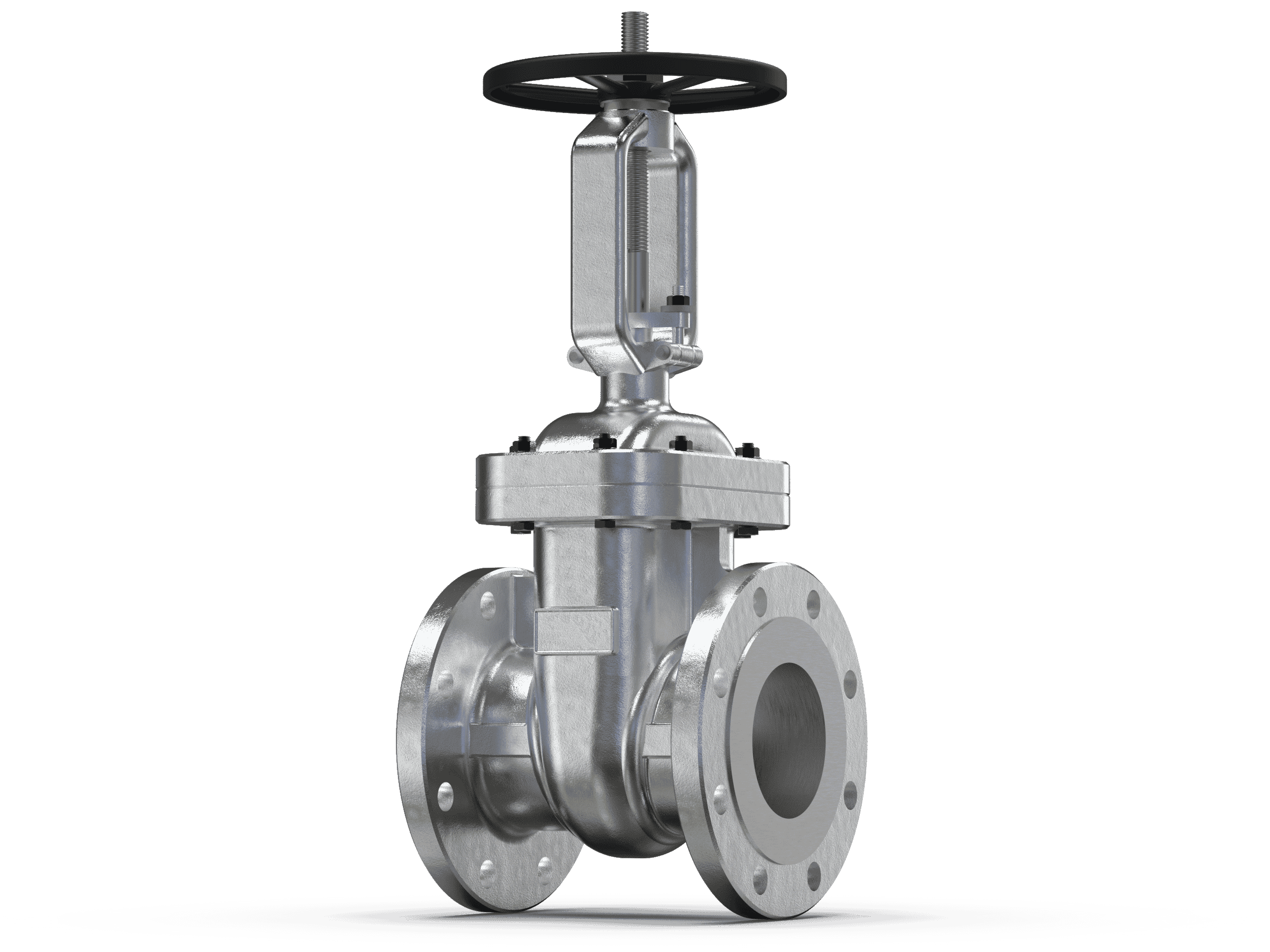

Gate Valves

(Bolted Bonnet & Pressure Seal Bonnet)

Technical Specifications

Size1/2″-36″ (15NB – 900NB)

Class150#-2500#

CS / SS / Alloys / Monel / Hastalloys

Solid / Flexible Wedge / Parallel / Double Disc

Stem Protector & Chain Pulley available

SpeciallyBellow Sealed, Cryogenic, High Temp

Metal to Metal and Metal to soft Seat

Manual, Gear, Electrical, Pneumatic operated

DesignASME B16.34 / API 600 / IS 14846

Face to FaceASME B16.10 / DIN

End to EndSW/BW / Flanged End / RTJ

Pressure-Temp RatingASTM B 16.34

Screwed End DimASTM B 1.20.1

BW EndASME B16.25

TestAPI 598

Fire SafeNACE MR-01-75

SpecialASME B16.5 / B16.47 / BS / IS

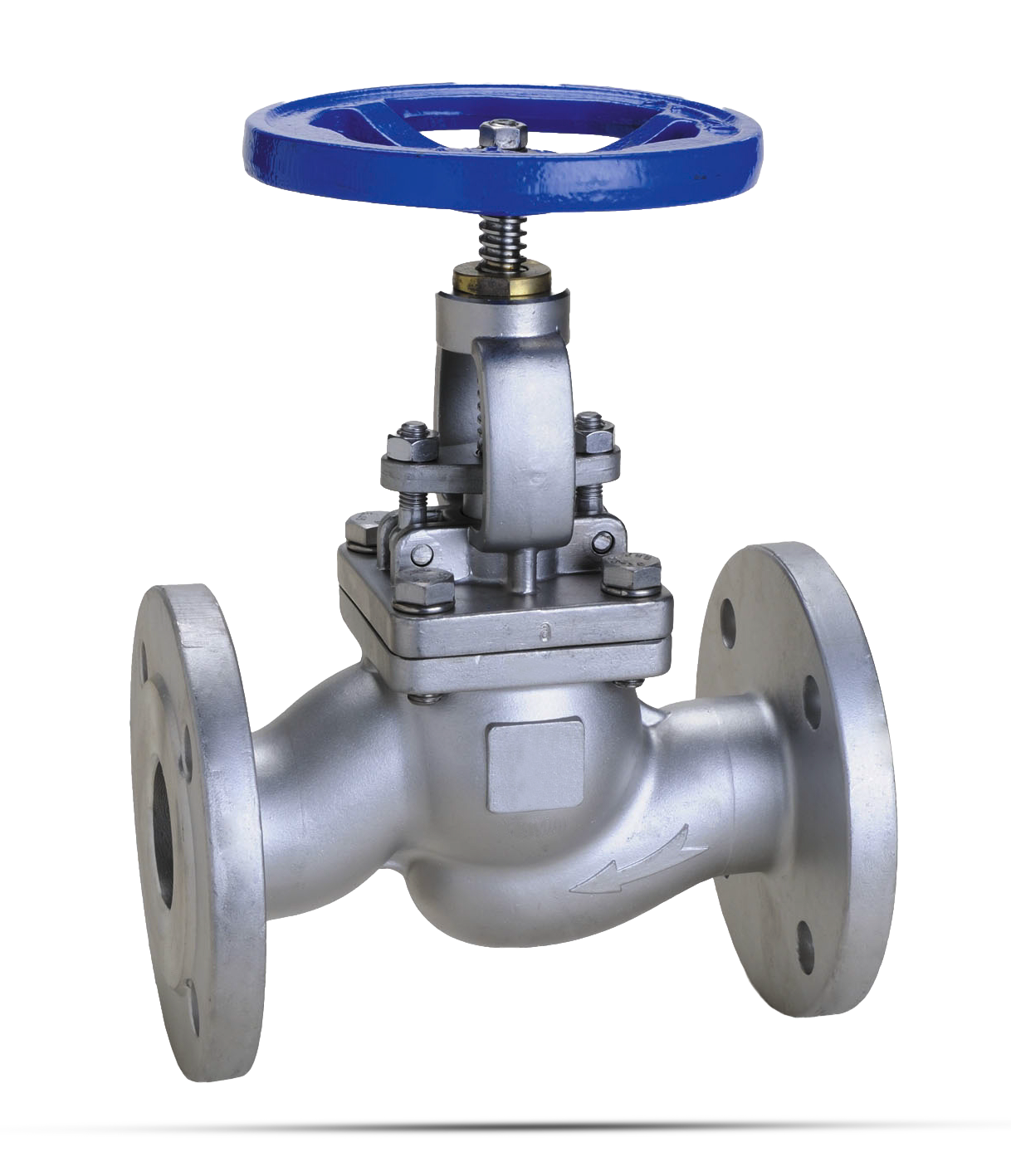

Globe Valves

Technical Specifications

Size1/2″-20″ (15NB - 500NB)

Class150#-2500#

CS / SS / Alloys / Monel / Hastalloys Steel / Bronze MOC

Parabolic, Regulating, Throttle and Guid Type Plug

Staight "T" Type, "Y" Type, Angle Type

SpecialityBelow Sealed, Cryogenic, High Temp and with pressure balancing arrangement

Metal to Metal and Metal to soft seat

Manual Operated / Gear Box / Pneumatic / Electrical Actuator

DesignASME B16.34 / BS 1873

Face to FaceASME B16.10 / DIN IS

End to EndBW Type / Flanged End / RTJ

TestAPI 598 / BS 6755

Pressure-Temperature RatingASTM B 16.34

Screwed End DimensionASTM B 1.20.1

BW EndASME B16.25

Fire SafeNACE MR-01-75 / 0103

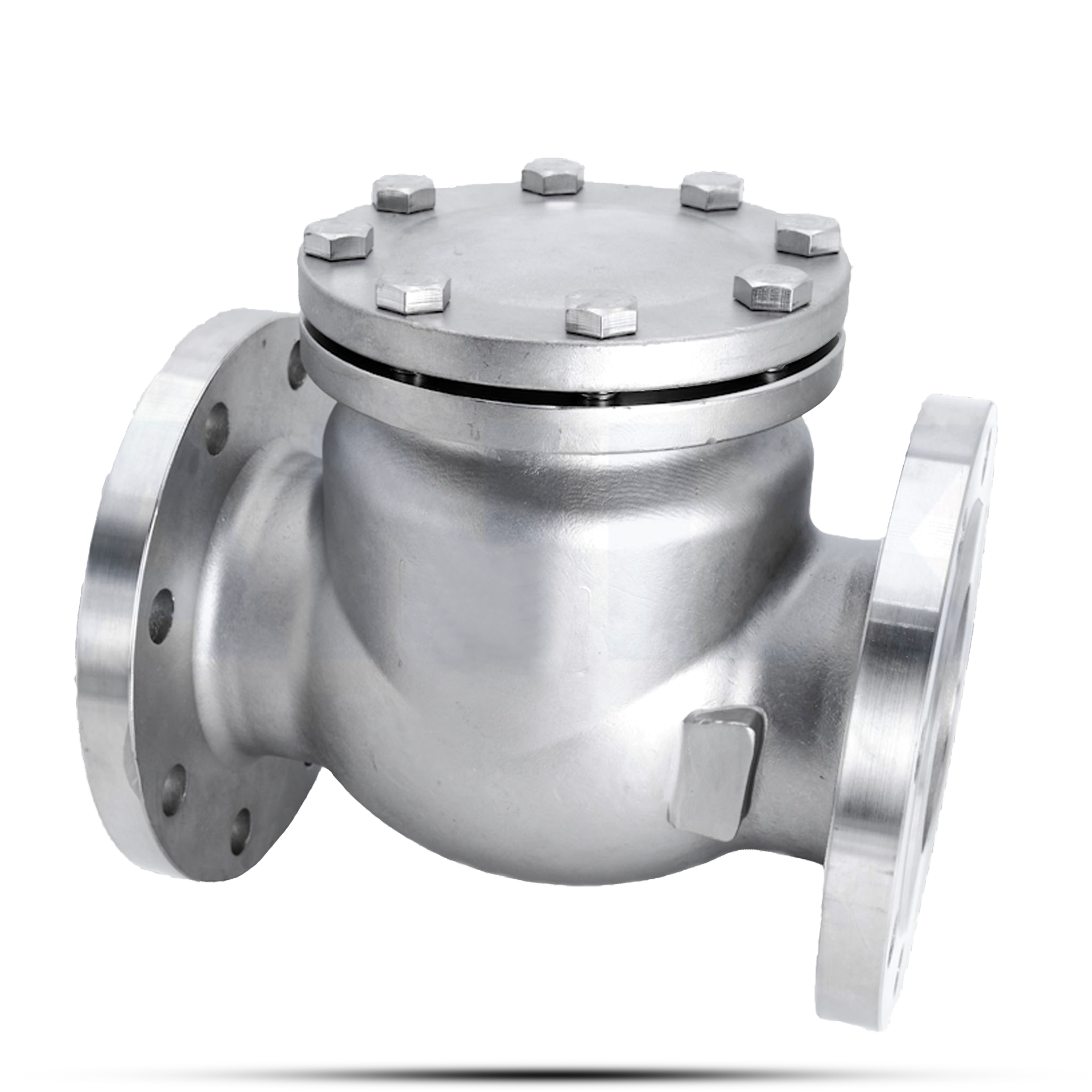

Check Valves

(Bolted Cover & Pressure Seal Cover)

Technical Specifications

Size1/2″-36″ (15NB – 900NB)

TypeBolted Cover, Pressure seal cover

Class150#-2500#

CS / SS / Alloys / Monel / Hastalloys / Bronze MOC

Self Operated / Dash Pot / Counter Weight

Non Slam arrangement on request

Wafer Type / Ball Type / Piston Type / Spring Loaded

Metal to Metal and Metal to soft seat

Rubber Lining on request

Flange DrillingASME B16.34 / BS 1868

Face to FaceASME B16.10 / DIN IS / BS

End to EndBW Type / Flanged End / RTJ

Screwed End DimensionASTM B 1.20.1

Pressure-Temperature RatingASTM B 16.34

BW EndASME B16.25

TestAPI 598 / BS 6755

SpecialNACE MR-01-75 / 0103

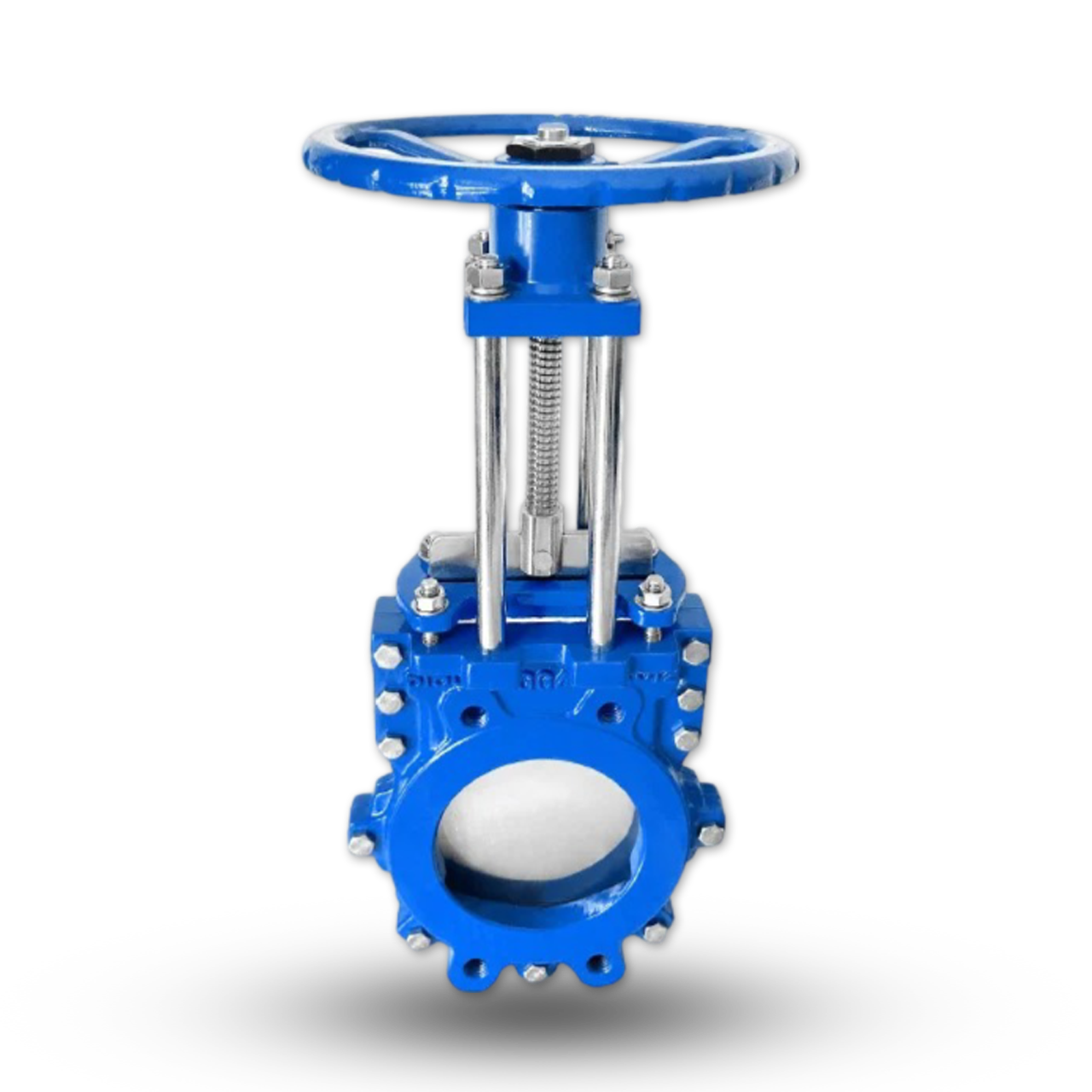

Knife Gate Valve

Technical Specifications

Size1/2″-16″ (15mm – 400mm)

Class150#-300#-600#

Two Way / Three Way

CS / SS / ALLOY STEEL / DSS / NI-ALLOYS / BRONZE

Hand Lever / Gear Box / Hydraulic / Electrical Actuator

Jacketing / Inverting with Spring Load

PTFE Sleeve body

Insolation and Reversing

Handened Sleeve and Plug

DesignASME B16.34 / API 599 / BS 5158 / IS 10459

Face to FaceASME B16.10

End to EndFlanged / Skrewed / BW

End FlangASME B16.5 / DIN / BS / IS

BW EndASME B16.25

TestAPI 598 / BS 6755

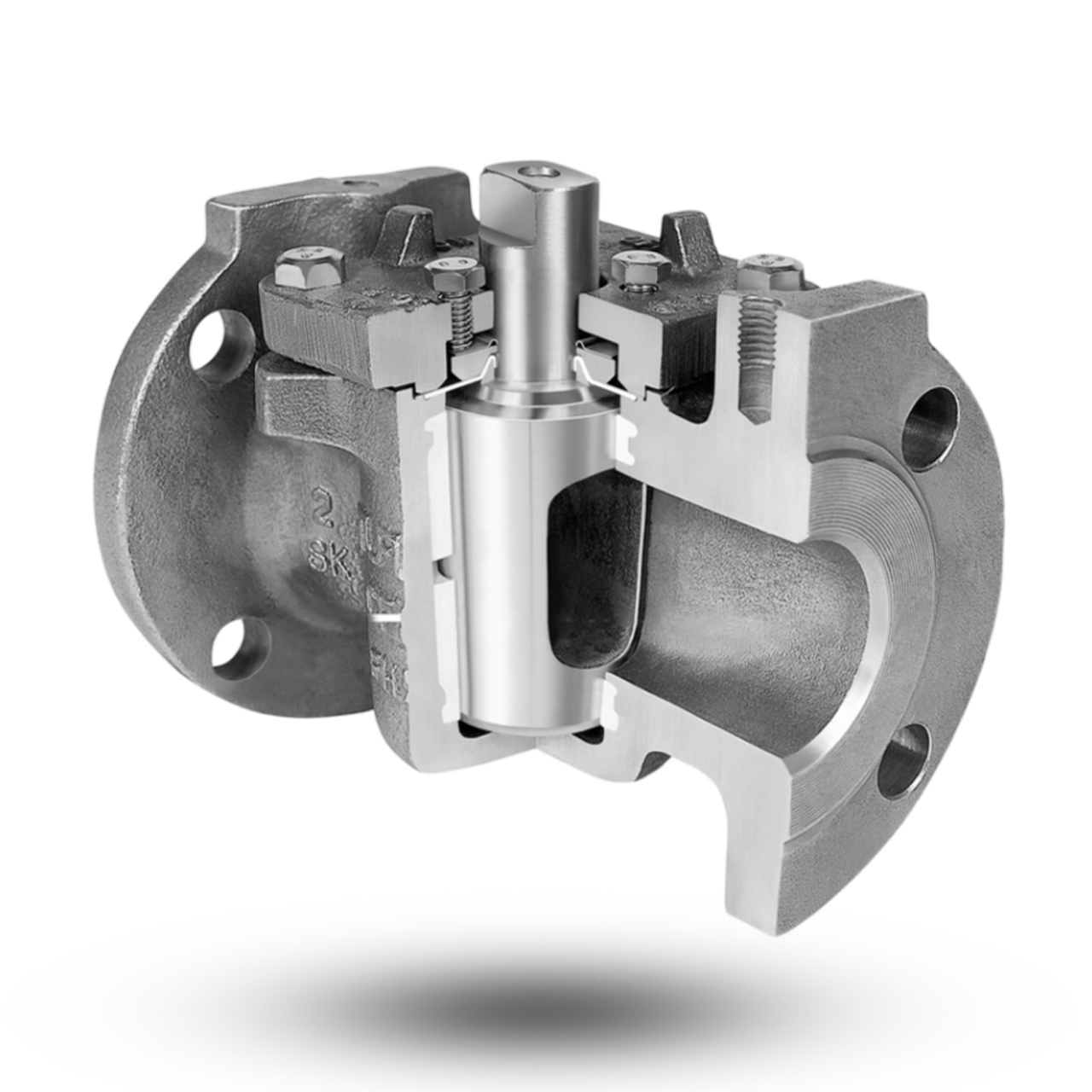

Sleeved Plug Valve

Technical Specifications

Size1″ to 16″ (25mm to 400mm)

Class150# - 1500#

Design CodeBS / DIN / IS

End FlangeASME B16.5 / DIN / BS / IS

Mat of ConCS / SS / ALLOY STEEL / DSS / NI-ALLOYS / BRONZE

Screen / MeshSS / Nickel / Inconel / Monel / Bronze

DesignASME B16.34 / API 600 / ASTM F 1200-88

TestAPI 598 / BS 6755

End to EndSW / BW / Flanged / RTJ ends

BW EndASME B16.25

SpecialityNACE MR-01-75

Flange connectionANSI B16.5

Pressure-Temperature RatingASTM B 16.34

Face to faceANSI B 16.10

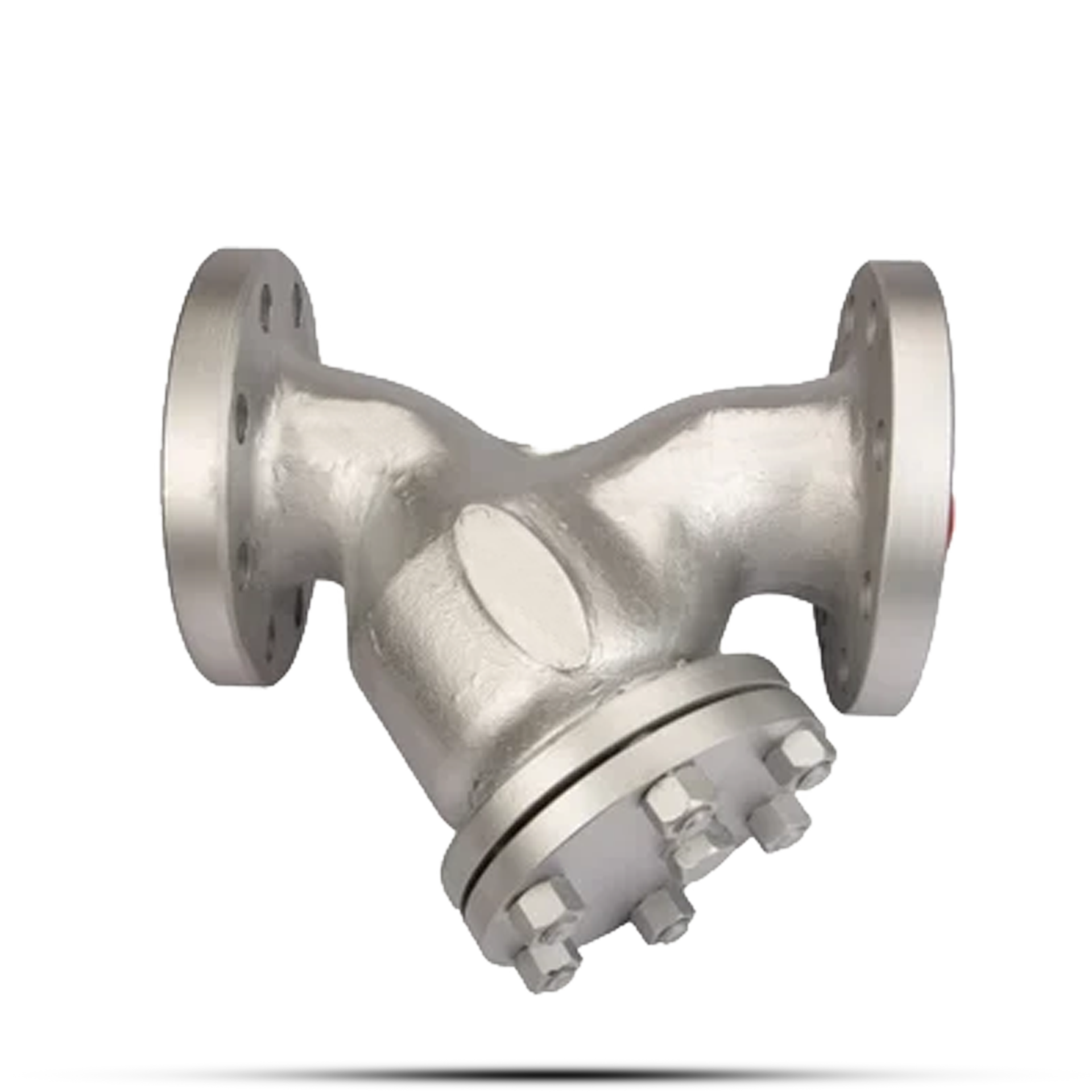

'Y' & 'T' Type Strainers

Technical Specifications

Size1″ to 16″ (25mm to 400mm)

Class150# - 1500#

Design CodeBS / DIN / IS

End FlangeASME B16.5 / DIN / BS / IS

Mat of ConCS / SS / ALLOY STEEL / DSS / NI-ALLOYS / BRONZE

Screen / MeshSS / Nickel / Inconel / Monel / Bronze

DesignASME B16.34 / API 600 / ASTM F 1200-88

TestAPI 598 / BS 6755

End to EndSW / BW / Flanged / RTJ ends

BW EndASME B16.25

SpecialityNACE MR-01-75

Flange connectionANSI B16.5

Pressure-Temperature RatingASTM B 16.34

Face to faceANSI B 16.10

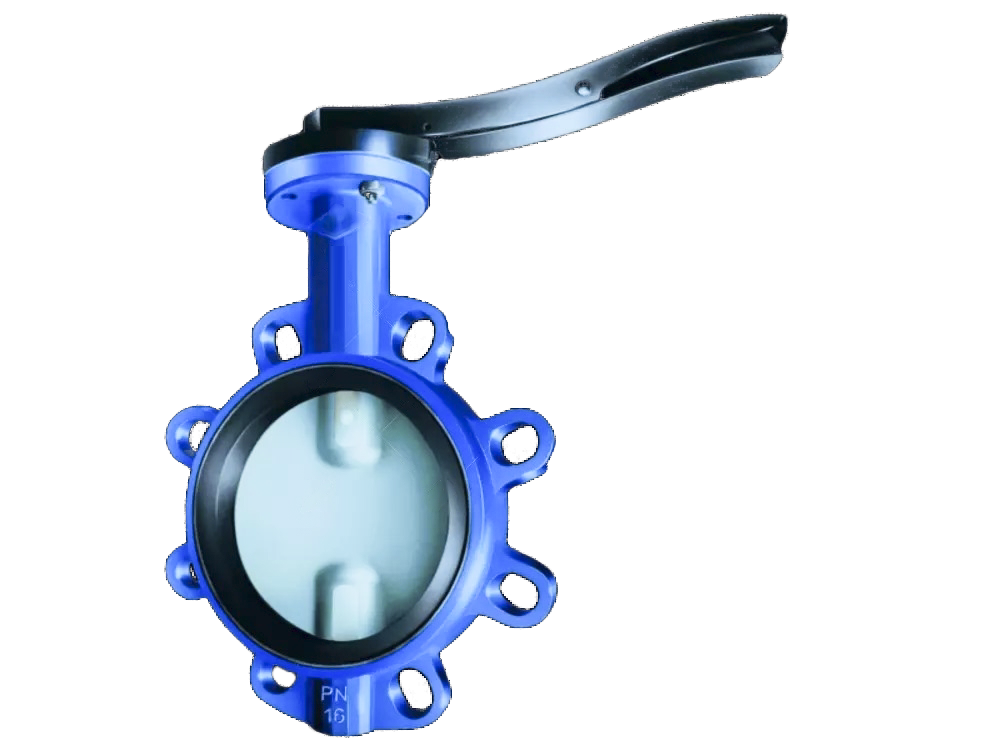

Butterfly Valves

(Soft Seated & Metal Seated)

Technical Specifications

Size1″-36″ (15NB – 900NB)

TypeSOFT SEATED, Metal Seated, Water, Lug, Flanged

Class150#-600#, PN10, PN16, PN25, PN40

CS / SS / Alloys / Monel / Hastalloys / Bronze MOC

ActucationHand Lever / Gear Box / Actuator (Pneumetic, Hydraulic, Electrical)

Wafer Type / Lug Type / Flange ends types

EPDM / Nitrile / PTFE / Rubber Lined & Seated

Metal to Metal and Metal to soft seat

DesignAPI 609, ANSI B16.34, BS 5155

Face to FaceAPI 609, BS 5155, ANSI B16.10

End to EndWafer, Lugged, Flanged

TestAPI 598, BS 5155

Fire SafeAPI 607

SpecialNACE MR-01-75 / 0103

Mounting FlangISO5211

ApplicationPneumatic / Electrical HVAC, Water Supply & Sewag, Food & Beverage, Chemical / Petrochemical, Power, Paper, Ship Building

SpecialityDouble Offset / Tripal Offset

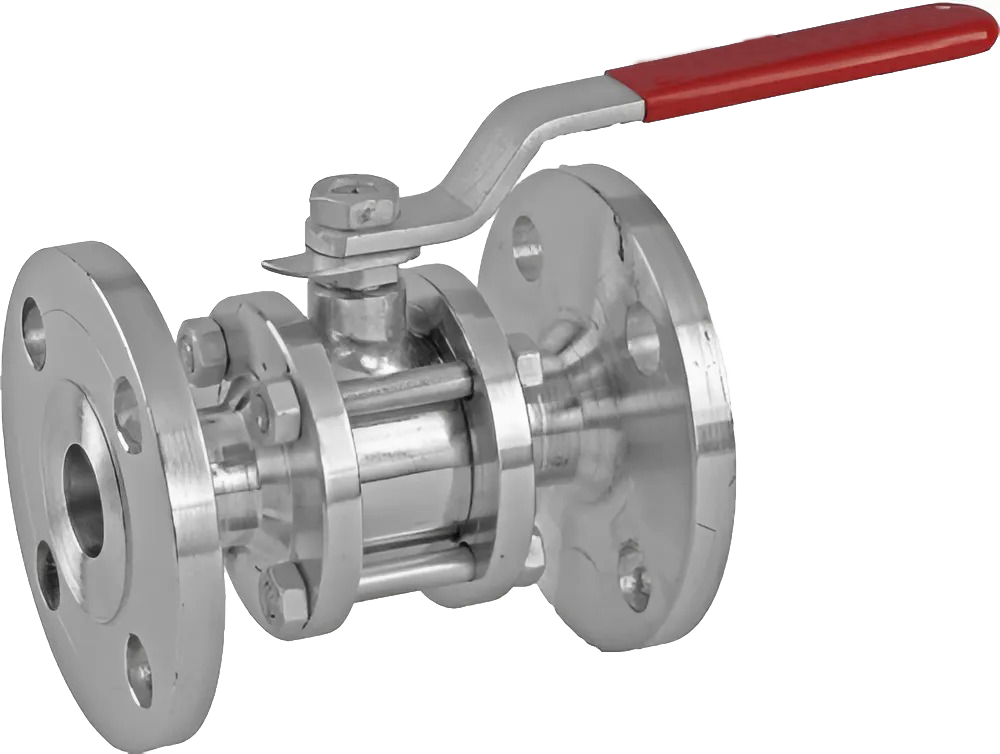

Ball Valves

(Soft Seated & Metal to Metal Seated)

Technical Specifications

Size1/2″-36″ (15NB-900NB)

Class150#-2500#

TypeFloating trunnioun mounted

Single / Two / Three piecesCS / SS / ALLOY STEEL / DSS / NI-ALLOYS / BRONZE

Trunion / Floating Ball, Full & Reduced Bore

Anti-Static Device

Blow-out Proof Stem

Fire Safe Designed

Low Emission

ActucationHand Lever / Gear Box / Actuator (Pneumetic, Hydraulic, Electric)

DesignASME B16.34 / BS 5351 / API 6D / BS 17292

Face to FaceASME B16.10 / API 6D

End to EndBW / Flanged / RTJ

Pressure-Temperature RatingASTM B 16.34

Screwed End DimensionASTM B 1.20.1

BW EndASME B16.25

TestAPI 598 / API 6D / BS 6755 / 12266

Fire SafeDesign Fire Safe API 607 / 6FA

SpecialNACE MR-01-75 / 0103

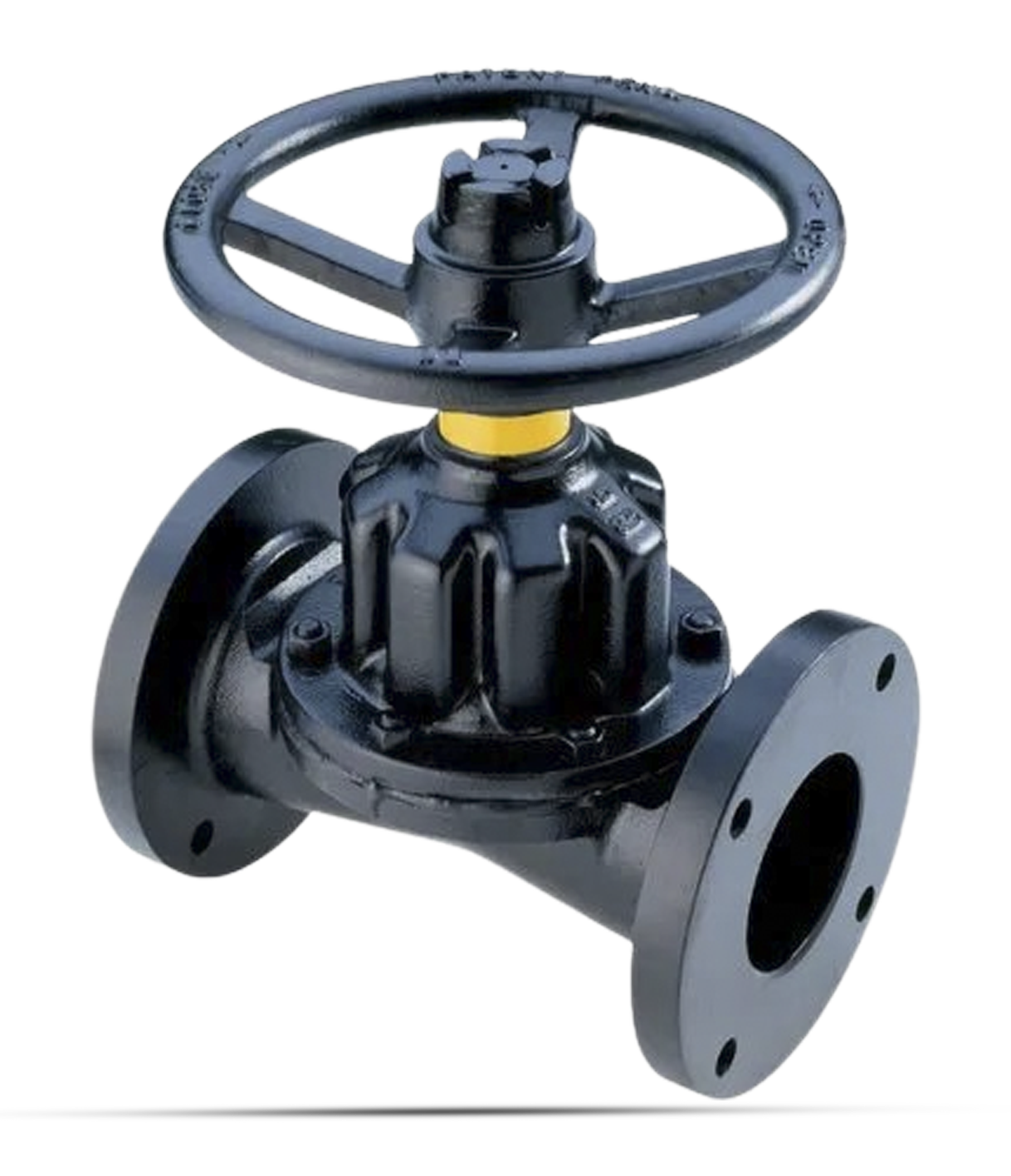

Diaphragm Valves

Technical Specifications

Flange DrillingANSI B 16.5 / BS 10 Table / DIN / JIS

Butt Weld EndANSI B16.25

SW EndsASME B16.25

TestingBS 6755-1

Pressure-Temperature RatingASTM B 16.34

DesignAPI 602 / BS 5352 / BS 15761

End FlangASME B16.5 / B16.47 / DIN / BS IS / JIS

BW EndASME B16.25

Socket end standardASME B16.11

Screwed endsASME B1.20.1

TestAPI 598 / BS 6755

SpecialNACE MR-01-75

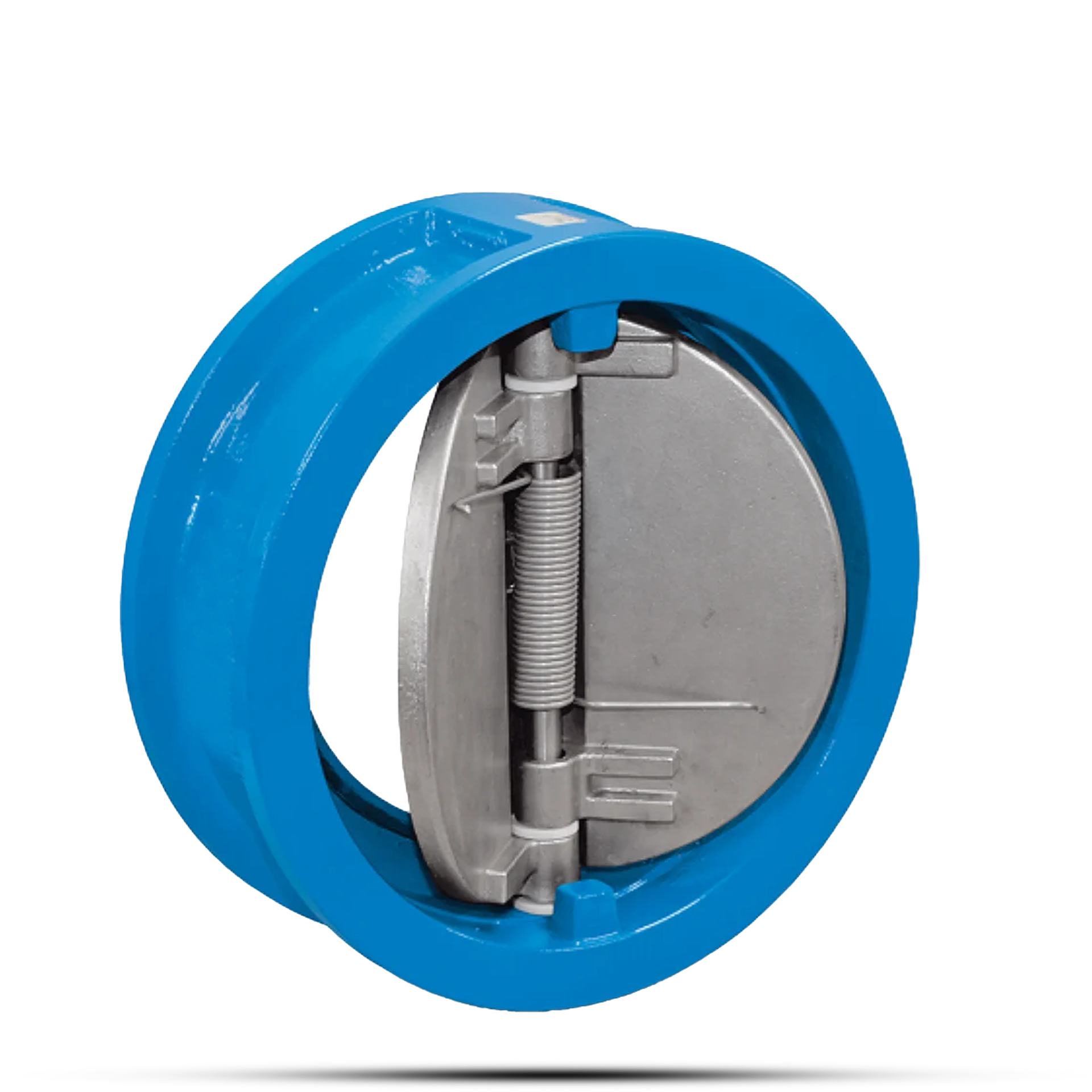

Dual Plate Check Valves

(Soft Seated & Metal Seated)

Technical Specifications

Size1/2″-12″ (15NB - 300NB)

Class150#-2500#

C S / CI / SS / Alloys / Monel / Hastalloys MOC

Self Operated

Multi Door

Spring Loaded / Retainer Less

Metal to Metal and Metal to Soft seat

Rubber Lining on request

DesignAPI 6D / API 594

Face to FaceAPI 6D / API 594

End to EndWafer Type / Flanged

End FlangeASME B16.5 / B16.47 / DIN / BS IS / JIS

TestAPI 598 / 6D

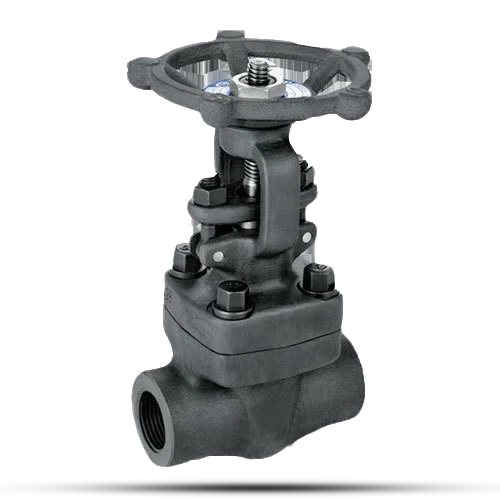

Forged Valves

Technical Specifications

Size1/2″-2″ (15mm – 50mm)

TypesGATE, GLOBE, LIFT, SWING CHECK

Class150#-2500#

C S / CI / SS / Alloys / Monel / Hastelloy Steel MOC

Manual Operated / Pneumatic / Electrical Actuator

Staight "Y" Type

Valve Positioner (Smart Principle)

Metal to Metal and Metal to soft seat

SpecialityBelow Sealed, Cryogenic and Hight Temp.

DesignAPI 602 / BS 5352 / BS 15761

End FlangASME B16.5 / B16.47 / DIN / BS IS / JIS

BW EndASME B16.25

Socket end standardASME B16.11

Screwed endsASME B1.20.1

TestAPI 598 / BS 6755

Pressure-Temperature RatingASTM B 16.34
